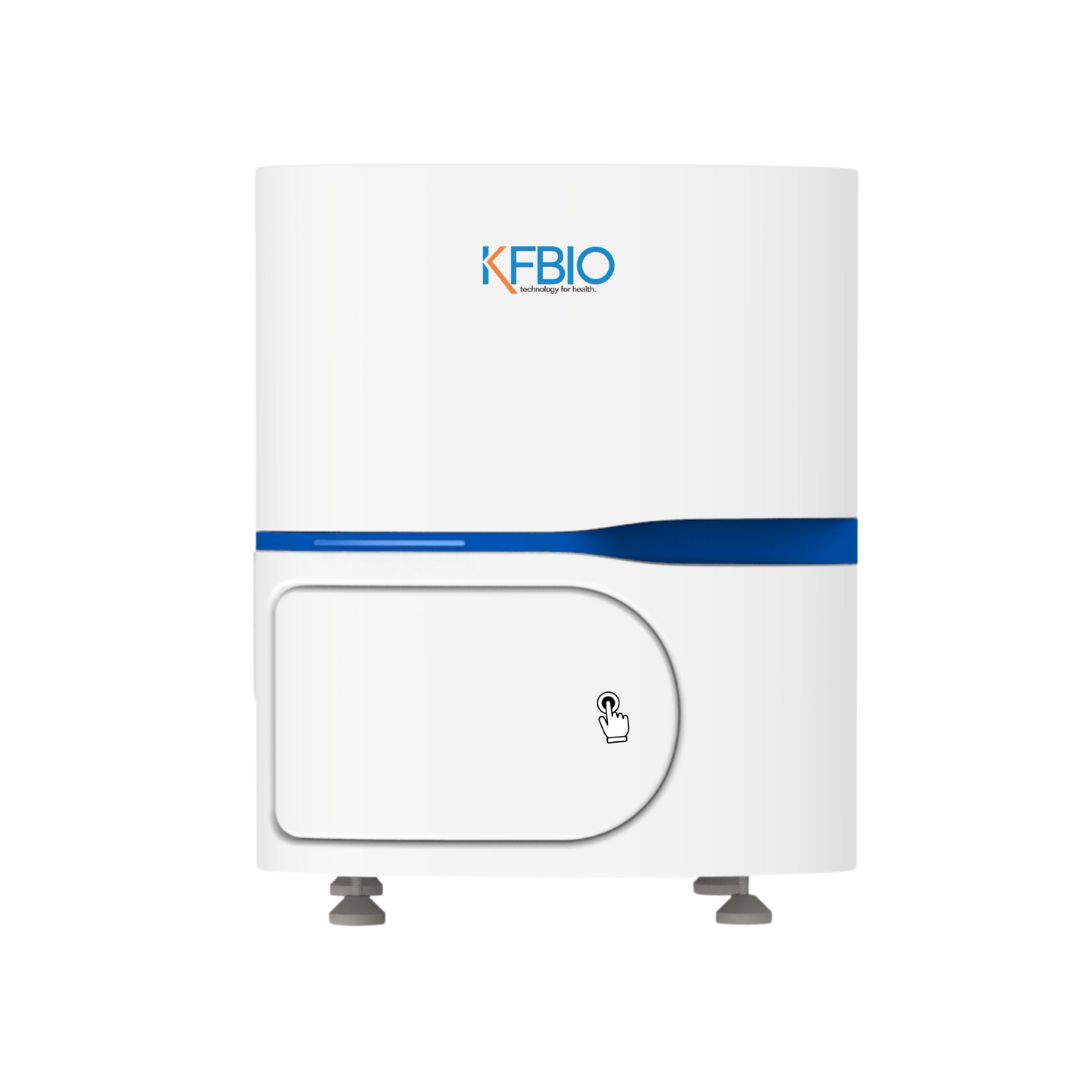

KFBio Digital Scanner Pro 400
Fully Automatic: One-click scanning, reads slide barcode automatically, uploads classified slides to storage server.
High Stability: Record: Scan 4600 slides continuously without errors.
Intelligent Scanning Mode Switch: Switch scanning parameter and mode automatically for different slides.
Automatic Image Quality Grade: Grade image quality automatically before archiving.
Slide Protection Program: Skip nonstandard slides automatically to avoid delays.
Efficient Data Management: Centralized data storage, efficient classification, binds to payment information automatically, graded storage
Acceptable Slide Size: 1 inch × 3 inch
Capacity: Up to 400 slides
Lighting: LED
Scanning Method: Line scanning
Objective Lens: Olympus super apochromatic objective lens
Numerical Aperture: 0.8 (supports multi-objective lens configurations)
Movement Control: Magnetic linear motor control
Magnification Options: 20x / 40x
Resolution: 0.25 µm/pixel (20x), 0.125 µm/pixel (40x)
Scanning Speed: ≤ 15 seconds (20x, 0.59in × 0.59in), ≤ 40 seconds (40x, 0.59in × 0.59in)
Z-Stack Scanning: Supported
Focusing: Automatic and manual options
Precise Identification: Yes
Label Identification: Barcode and QR code compatible
Image Formats: KFB / TIF / DICOM
Workstation Requirements
CPU: Intel Core i7
Hard Disk: 1TB
Memory: 16GB
Monitor: 24 inch
Dimensions (L × W × H): 20.6 × 23.4 × 25.6 inches
Weight: 178 pounds
